HumiSeal® 2A53 is a two component epoxy conformal coating supplied as Parts A and B, suitable for general printed circuit boards and applications where exceptional resistance to solvents or other chemicals is required. HumiSeal® 2A53 fluoresces under UV light for inspection purposes. HumiSeal® 2A53 coating is MIL-I-46058C qualified and IPC-CC-830 and RoHS Directive 2002/95/EC compliant.
Overview
HumiSeal® 2A53 is a two component epoxy conformal coating supplied as Parts A and B, suitable for general printed circuit boards and applications where exceptional resistance to solvents or other chemicals is required. HumiSeal® 2A53 fluoresces under UV light for inspection purposes. HumiSeal® 2A53 coating is MIL-I-46058C qualified and IPC-CC-830 and RoHS Directive 2002/95/EC compliant.
Overview
Specifications
| Chemistry | Epoxy |
|---|---|
| Curing Conditions | Heat |
| Material | 2 hrs @ 93°C |
| Volatile Organic Compounds | 25-75 microns |
| Cure Time | 2 hrs @ 93°C |
Downloads

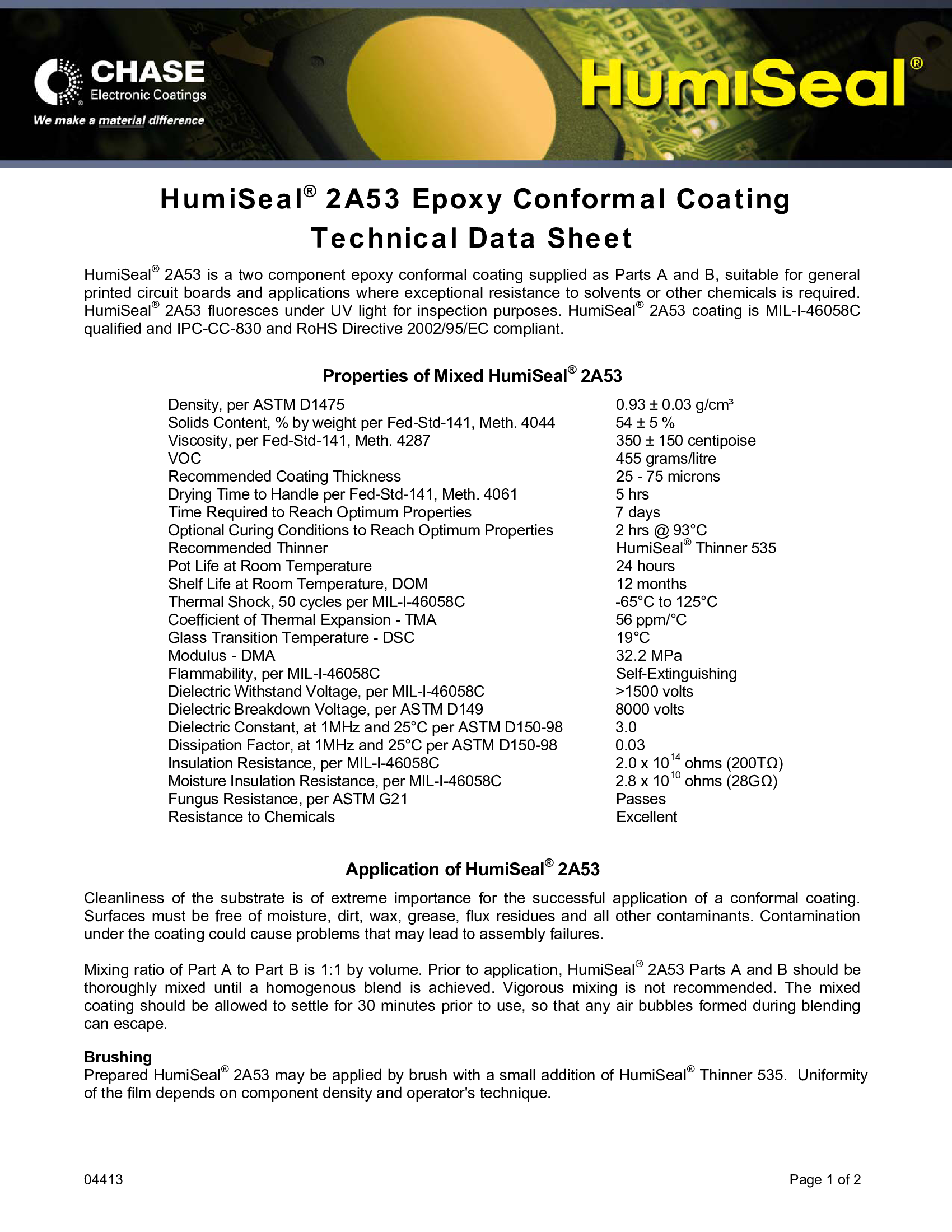

HUM 2A53B Technical Data Sheet
pdf?format=pdfDownload
